Fan Kit

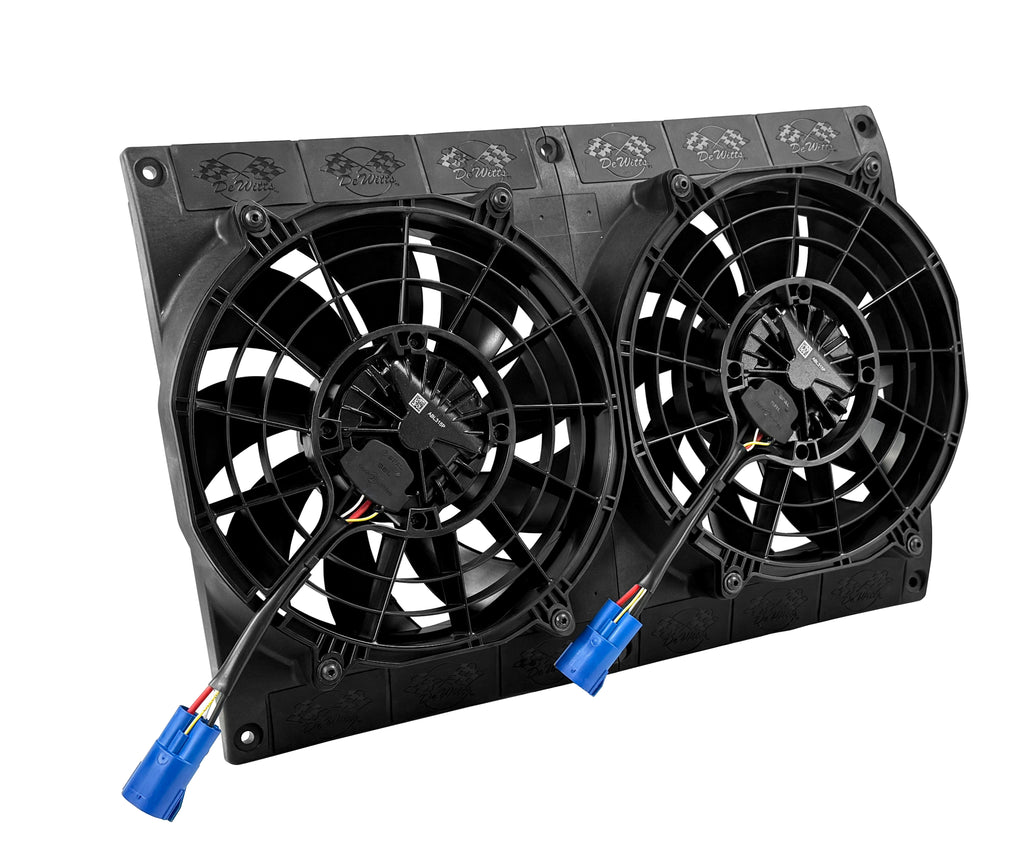

DeWitts Radiator and Spal USA have teamed up to create the new 32-SP495 Dual 11" Brushless Fan Shroud system. Featuring a sleek, computer-designed ballistic injection molded shroud and two SPAL 30107059 Brushless Plus Series 11" fans, this system moves a combined 2,884 CFM, making it ideal for extreme performance demands and high-heat environments. Designed as a Direct Fit replacement for SPAL 32-SP30102052 dual brushed fan kit, it shares the same bolt pattern for quick and easy installation.
SPAL brushless fans were developed and designed with cutting-edge technology, high-energy ferrite magnets, and a state-of-the-art sine wave sensorless drive. These motors reach more than 82% electrical efficiency, placing the 500-watt power range products among the most efficient motors anywhere. The result is high air-side performance at minimum electrical load. The brushless motor is fully sealed to be IP68 and IP6K9K compliant (water and dust proof) and can operate in the presence of many aggressive or hazardous substances.
-
Dual 11-inch high-performance brushless fans moving 2,884 cfm of air
-
Features a 500-Watt sealed brushless motor with a 40,000-hour use life
- Quiet pulse-modulated variable speed operation
-
Fits any crossflow radiator with mounting tabs
- Wiring requires no harness or computer modifications
- Kit includes everything needed: fan, harness, jumper, and temp sensor
-
Low amp draw soft start technology with 175 degrees on and variable to 205 degrees full speed
Kit Includes:
- (2) 32-SP30107059 11" Brushless Fan
- (2) 32-SP-JUMPER Fan Plug Jumper
- (1) 32-SP-TSHARN Switch Harness
-
(12) 32-991 Flaps
Mounting:
These fans need to be wired directly to the battery. The temp sensor can be placed inline or directly into the radiator tank using a 3/8” NPT female bung. Complete wiring instructions are included with each kit which includes an optional override for A/C equipped cars or an instant full speed switch.
Brushless Fan Features:
-
PWM and analog input for continuous adjustment of fan speed.
-
Open collector diagnostic output.
-
Meets EMC directives: 2006/28/EC.
-
Low-weight motor.
-
Higher ambient working temperature.
-
Protection against:
Overheating
Overcurrent and overvoltage
Mechanical overload
Locked rotor
Load dump
-
High efficiency and low power consumption.
-
Low noise, vibration, and harshness.
-
Electronic controls with on-board diagnostics.
-
Motor with integrated electronics.
-
Battery compensation system.
-
Proprietary sine-wave sensorless drive (SPAL-patent).
-
Low inertia inner rotor design.
Specs
Cooling Fan Type: Electric
Fan Quantity: 2
Fan Diameter: 11”
Minimum Fan RPM: 950 RPM
Maximum Fan RPM: 3,800 RPM
Fan Quantity: 2
Fan Diameter: 11”
Minimum Fan RPM: 950 RPM
Maximum Fan RPM: 3,800 RPM
Max Sustained CFM: 2,884 CFM
Fan Flow Type: Puller
Rotation: Counterclockwise/Reverse
Blade Type: Non-Flex
Blade Style: Curved
Blade Count: 9-blade
Blade Material: Plastic
Blade Color: Black
Hub Material: Plastic
Hub Color: Black
Starting Amps: 1 amp
Running Amps: 33 amps
Voltage: 12 volts
Fan Flow Type: Puller
Rotation: Counterclockwise/Reverse
Blade Type: Non-Flex
Blade Style: Curved
Blade Count: 9-blade
Blade Material: Plastic
Blade Color: Black
Hub Material: Plastic
Hub Color: Black
Starting Amps: 1 amp
Running Amps: 33 amps
Voltage: 12 volts
