C2 Corvette LS Swap

: In stock

Regular price $1,284.99

Selected Part Number: 32-6139063M
Have a question?

Click "Need Help?" in the lower right or click here to ask a question!

Ordering from Canada? Customs and import tax may apply.

Radiator
  • Complete aluminum radiator assembly with no plastic end tanks or rubber gaskets
  • Two core radiator design with dual 1-inch-wide core tubes for maximum cooling
  • Press formed end tanks fully welded to core with no gaskets or epoxy construction
  • Factory-sized LS cooling hose inlet and outlet connections on passenger side
  • LS steam line fitting welded into radiator end tank for your LS swap
  • Direct Fit® upgrade means just that, with no modifications needed to your Corvette
  • Radiators are assembled in the U.S.A. with a lifetime warranty
  • Serpentine cooling fins deliver optimum airflow across core tubes for cooling
  • Optional 4-plate transmission oil cooler available on select models
  • Dual 11-inch electric 2,780 cfm cooling fan package to keep your LS cool
  • Stock-dimension radiator with single 16-inch 2,360 cfm electric fan also available
  • Electric fan temperature switch mounted in end tank to minimize wiring
  • Black Ice two-part epoxy coating available on all aluminum radiator models
  • Controlled atmosphere furnace brazed core with TIG welded end tanks
  • Billet DeWitts branded 15 psi radiator cap included
  • Full wiring harness kit included for the pre-mounted dual fan package


Cool Your LS Swapped C2 Corvette with a DeWitts Direct Fit® and Drive Worry Free

The second generation of Corvette, built from 1963-1967, is often referred to as the C2, but some call them “mid-year” Corvettes or “Sting Ray” models (note spelled as two words, versus the later C3 generation’s “Stingray”). One thing most can agree on is that these C2 Corvette years are beautiful cars that every enthusiast dreams of owning, however the limited five-year production run and just over 100,000 built means they often command a premium these days.

The C2 Corvette has a timeless design, and the Sting Ray has seen a lot of interest in the “restomod” crowd as of late. Restomodding a vehicle is when you modernize the drivetrain, suspension, and more while keeping the overall look subdued or stock appearing. To that end, the LS engine platform (which is used in the C5 and up generation Corvettes) has become an extremely popular engine upgrade. With various engine mount adapters, swap kits, and such, the LS engine is a drop in upgrade that we’re here to help keep cool with our Direct-Fit LS swap radiator packages.



Built to Fit Your LS Swapped Corvette with Zero Modifications to Install

The LS engine family has a couple of unique traits that require a specific radiator design. While some manufacturers make do with a universal radiator that gets a “nip and tuck” to work, that’s not how we do things with DeWitts radiators. Our Pro Series Direct Fit® C2 LS swap Corvette radiator is built using the highest quality aluminum materials, assembled, furnace brazed, and TIG welded all in our Wixom, Michigan facility (just 30 mins up I-96 from GM’s corporate headquarters at the Renaissance Center). Each radiator carries a limited lifetime warranty, is pressure tested, and carefully double wall boxed with insulation to ensure it makes the trip to you and keeps your project moving forward.

Our press formed end tanks provide an OE appearance and mean you won’t have any fitment issues, no matter if your C2 Corvette was originally a small block or big block car. Flat plate welded end tanks that our competitors use rarely have this luxury, requiring modifications to your car to fit the larger tanks and/or additional bracketry or adapters. Using a two-row core built with 1-inch-wide core tubes and serpentine cooling fins (which is equivalent to a four-core copper/brass radiator) maximizes air flow contact through the core to pull away the most heat, no matter the demand on the system.

Our Direct Fit® LS swap radiator allows you to easily bolt in the best aluminum radiator for your C2 Corvette LS swap. Not only is our radiator a hassle-free install but we have properly fitted our radiator with the correctly located LS inlet and outlet radiator hose fittings, a steam line fitting, and a pair of SPAL 11-inch cooling fans with pre-installed coolant temperature sensor to ensure your LS stays cool. Automatic transmission-equipped models feature a 4-plate internal cooler with 3/8-inch NPT ports. Our Black Ice™ two-part epoxy coating option is a semi-gloss black finish that provides an OE-like look for those that want to keep things low key under the hood.



C2 Corvette Pro Series Direct Fit® LS Swap Radiator Options

Our C2 Corvette LS swap radiator is available for all years of C2 production, including factory small block and big block applications. Depending upon installation needs (pin mount or cradle mount) we provide the correct DeWitts radiator configuration for a hassle-free installation. The included SPAL dual 11-inch cooling fan solution, rated at 2,780 cfm, comes preinstalled, as does the fan’s temperature sensor. A complete fan wiring harness is included, as well as a billet 15 psi radiator cap with DeWitts logo.

For those looking to maintain the original Harrison-style radiator dimensions we offer a stock sized Harrison aluminum radiator (with flat plate laser cut and TIG welded end tanks) with a single 16-inch electric fan combination that outputs 2,360 cfm of airflow. This particular option is available for 1963-1967 small block pin mount applications and is available in both natural and Black Ice finishes and with or without our optional 4-plate auto trans cooler.

Our universal polished radiator overflow tanks are the perfect addition for your custom LS swap cooling system build and can be mounted almost anywhere in the engine compartment. Finally, be sure to add some DeWitts High Performance coolant to your order to protect your cooling system and help it achieve maximum thermal capabilities.



DeWitts Radiator Application Guide:

1963-1965 Small Block with Pin Mount

32-6139024M (Pro Series Direct Fit®, dual 11-inch fans, natural finish, no cooler)

32-6139024A (Pro Series Direct Fit®, dual 11-inch fans, natural finish, auto trans cooler)

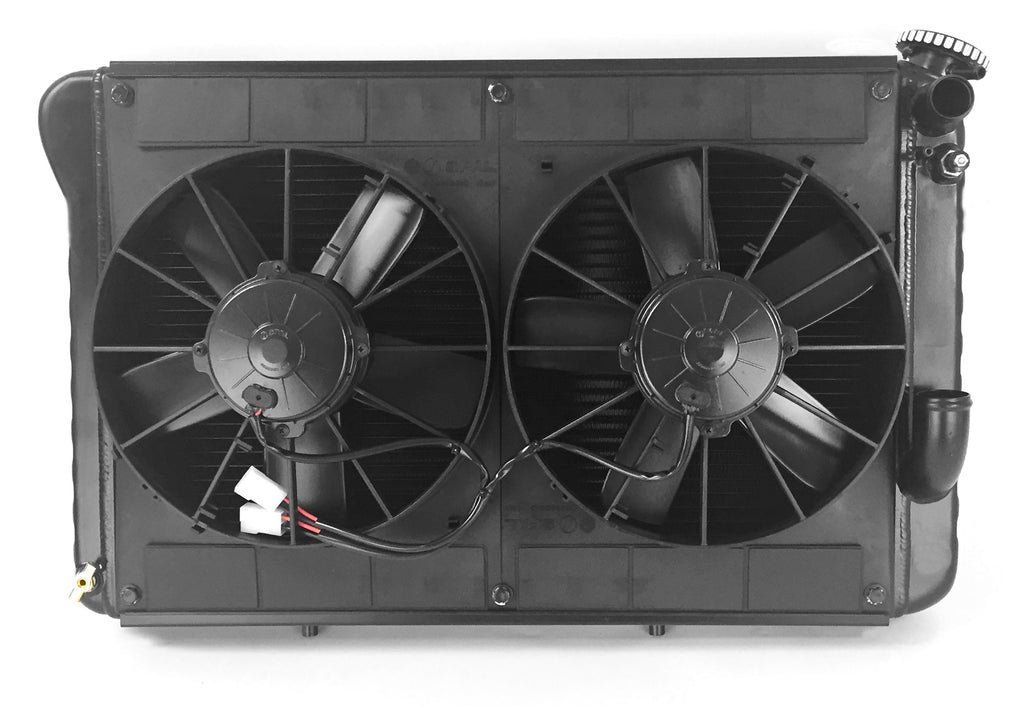

32-6239024M (Pro Series Direct Fit®, dual 11-inch fans, Black-Ice finish, no cooler)

32-6239024A (Pro Series Direct Fit®, dual 11-inch fans, Black-Ice finish, auto trans cooler)



1966-1967 Small Block with Pin Mount

32-6139025M (Pro Series Direct Fit®, dual 11-inch fans, natural finish, no cooler)

32-6139025A (Pro Series Direct Fit®, dual 11-inch fans, natural finish, auto trans cooler)

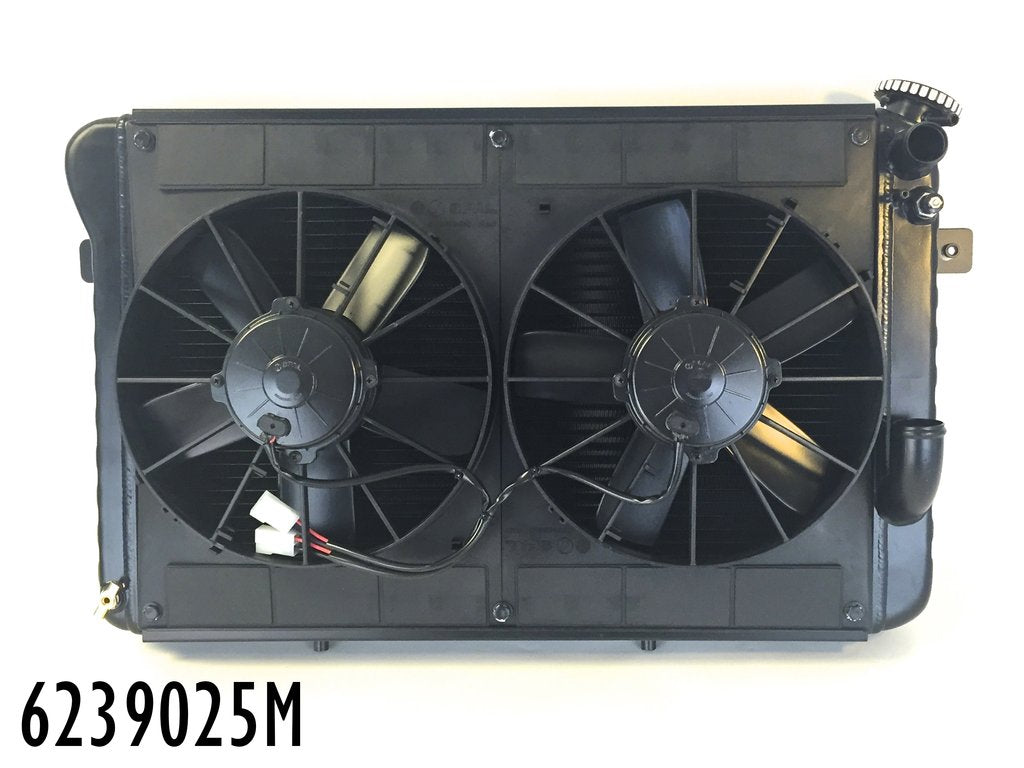

32-6239025M (Pro Series Direct Fit®, dual 11-inch fans, Black-Ice finish, no cooler)

32-6239025A (Pro Series Direct Fit®, dual 11-inch fans, Black-Ice finish, auto trans cooler)



1963-1967 Small Block with Pin Mount, Harrison-style (stock dimensions with fabricated end tanks)

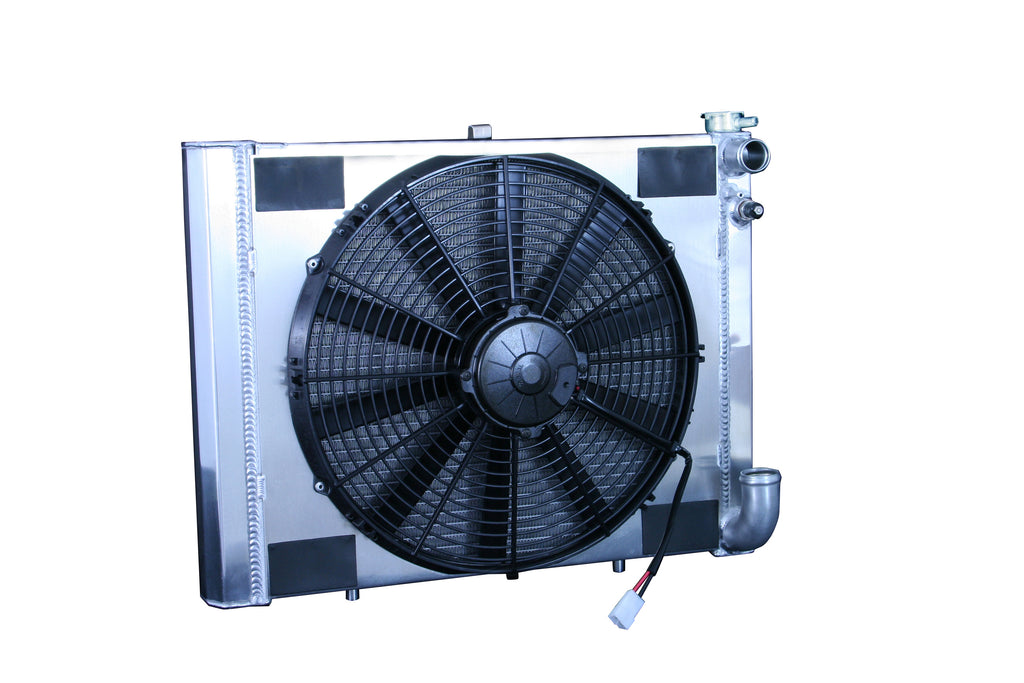

32-6139063M (Pro Series Direct Fit®, single 16-inch fan, natural finish, no cooler)

32-6139063A (Pro Series Direct Fit®, single 16-inch fan, natural finish, auto trans cooler)

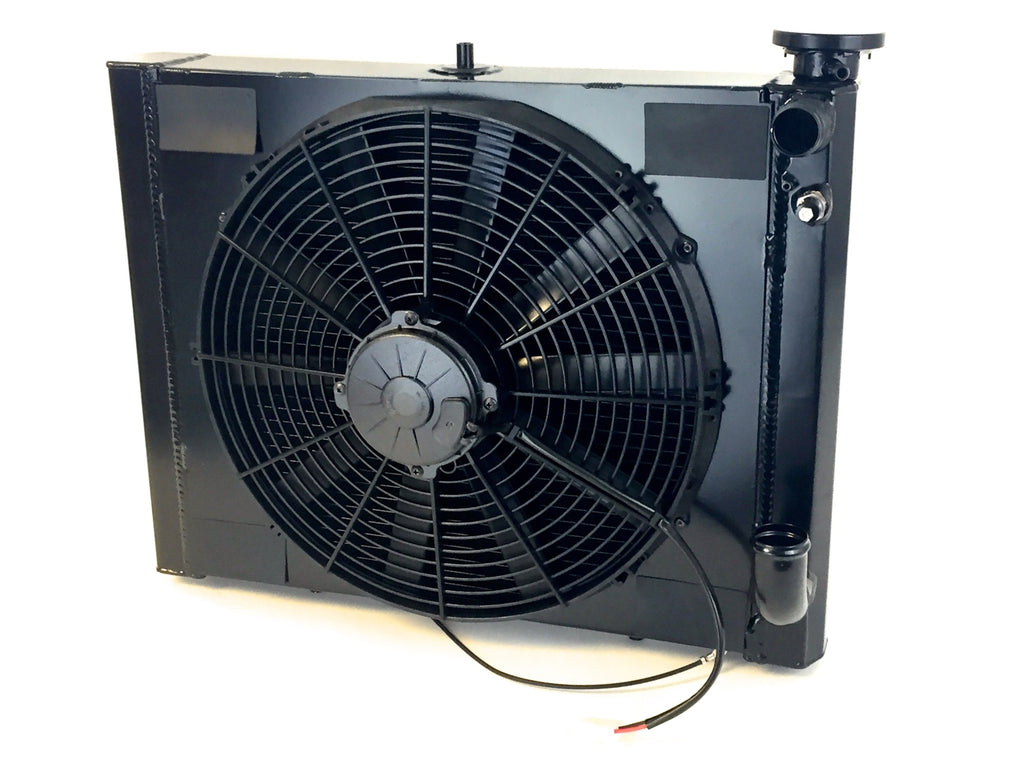

32-6239063M (Pro Series Direct Fit®, single 16-inch fan, Black-Ice finish, no cooler)

32-6239063A (Pro Series Direct Fit®, single 16-inch fan, Black-Ice finish, auto trans cooler)



1966-1967 Big Block with Cradle Mount (22.5-inch core)

32-6139066M (Pro Series Direct Fit®, dual 11-inch fans, natural finish, no cooler)

32-6139066A (Pro Series Direct Fit®, dual 11-inch fans, natural finish, auto trans cooler)

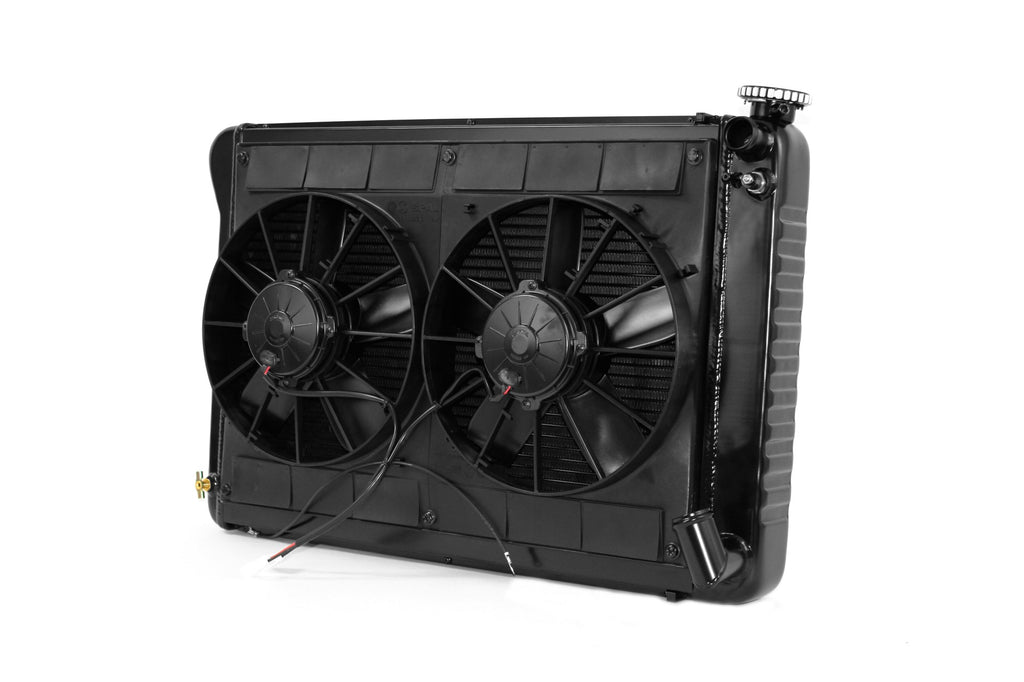

32-6239066M (Pro Series Direct Fit®, dual 11-inch fans, Black-Ice finish, no cooler)

32-6239066A (Pro Series Direct Fit®, dual 11-inch fans, Black-Ice finish, auto trans cooler)

Radiator Specifications

6139024/6239024 Radiators

DeWitts Direct Fit®

Original Equipment

Radiator Style:

Double Pass

Single Pass

Radiator Flow Direction:

Crossflow

Crossflow

Material Type:

Aluminum

Aluminum

Inlet Location:

Upper passenger side

Upper driver side

Outlet Location:

Lower passenger side

Lower passenger side

Row Quantity:

2

Single row plate

Tube Size:

1"

N/A

Core Width:

23.5

22.5”

Core Height:

17

16.75”

Overall Width:

27.5

22.5”

Core Thickness:

2.25"

2.875”

Overall Thickness:

3"

2.875”

Overall Height:

17

16.75”

Cap Included:

Yes

No

Finish:

Natural or Black

Black

Filler Neck Height:

1"

N/A

Inlet Size:

1.25”

1.5”

Outlet Size:

1.5”

1.75”

Cooler Thread Size:

3/8 NPT

N/A



6139025/6239025 Radiators

DeWitts Direct Fit®

Original Equipment

Radiator Style:

Double Pass

Single Pass

Radiator Flow Direction:

Crossflow

Crossflow

Material Type:

Aluminum

Aluminum

Inlet Location:

Upper passenger side

Upper driver side

Outlet Location:

Lower passenger side

Lower passenger side

Row Quantity:

2

Single row plate

Tube Size:

1"

N/A

Core Width:

23.5

22.5”

Core Height:

17

16.75”

Overall Width:

27.5

22.5”

Core Thickness:

2.25"

2.875”

Overall Thickness:

3"

2.875”

Overall Height:

17

16.75”

Cap Included:

Yes

No

Finish:

Natural or Black

Black

Filler Neck Height:

1"

N/A

Inlet Size:

1.25”

1.5”

Outlet Size:

1.5”

1.75”

Cooler Thread Size:

3/8 NPT

N/A



6139063/6239063 Radiators

DeWitts Direct Fit®

Original Equipment

Radiator Style:

Dual Pass

Single Pass

Radiator Flow Direction:

Crossflow

Crossflow

Material Type:

Aluminum

Aluminum

Inlet Location:

Upper passenger side

Upper driver side

Outlet Location:

Lower passenger side

Lower passenger side

Row Quantity:

2

Single row plate

Tube Size:

1"

N/A

Core Width:

18.00"

22.5”

Core Height:

16.75"

16.75”

Overall Width:

22.5”

22.5”

Core Thickness:

2.25"

2.875”

Overall Thickness:

3"

2.875”

Overall Height:

16.75"

16.75”

Cap Included:

Yes

No

Finish:

Natural or Black

Black

Filler Neck Height:

N/A

N/A

Inlet Size:

1.25”

1.5”

Outlet Size:

1.5”

1.75”

Cooler Thread Size:

5/16” Inv. Flare

N/A



6139066/6239066 Radiators

DeWitts Direct Fit®

Original Equipment

Radiator Style:

Double Pass

Single Pass

Radiator Flow Direction:

Crossflow

Crossflow

Material Type:

Aluminum

Copper/brass

Inlet Location:

Upper passenger side

Upper driver side

Outlet Location:

Lower passenger side

Lower passenger side

Row Quantity:

2

4 core (3/8" tubes)

Tube Size:

1"

3/8"

Core Width:

22.5” (23.5” w/fans)

22.5”

Core Height:

18.5”

18.5”

Overall Width:

27.5

27.5

Core Thickness:

2.25

2.5"

Overall Thickness:

3.2"

3.2"

Overall Height:

18.6

18.6

Cap Included:

Yes

No

Finish:

Natural or Black

Black

Filler Neck Height:

1"

1"

Inlet Size:

1.25”

1.5”

Outlet Size:

1.5”

1.75”

Cooler Thread Size:

3/8” NPT

5/16" Inv Flare

Dual Fan

This fan package includes our Direct Fit® aluminum radiator, full face aluminum shroud with six (6) rubber check valves (flaps), and dual high performance 11" SPAL Fans. SPAL is a world leader in the design and manufacture of high-quality electric axial fans for automotive use. The kit comes with a wiring harness and temperature switch for fan operation.

Dual 11" SPAL Fans

Blade Diameter:

11"

Blade Orientation:

Paddle

CFM:

2720

Overall Width:

23.5"

Overall Height:

16.3"

Fan Thickness:

4.25"

Amps:

30 each

Fan SKU #:

32-SP30102052

Rotation:

CCW

Weight:

13 lbs

# of Blades:

10

Color:

Black

Material:

Plastic

Push/Pull

Pull

Fuse Required:

40 amp

Voltage:

12V

Single Fan

This fan package includes our Direct Fit® aluminum radiator, full face aluminum shroud with six (6) rubber check valves (flaps), and a high performance 16" SPAL Fan. SPAL is a world leader in the design and manufacture of high-quality electric axial fans for automotive use. The kit comes with a wiring harness and temperature switch for fan operation.

16" SPAL Fan

Blade Diameter:

15.25"

Blade Orientation:

Straight

CFM:

1918

Overall Width:

15.75"

Overall Height:

16.3"

Fan Thickness:

3.5"

Amps:

21.6

Fan SKU #:

32-SP30102120

Rotation:

CCW

Weight:

6.7 lbs

# of Blades:

10

Color:

Black

Material:

Plastic

Push/Pull

Pull

Fuse Required:

40 amp

Voltage:

12V
